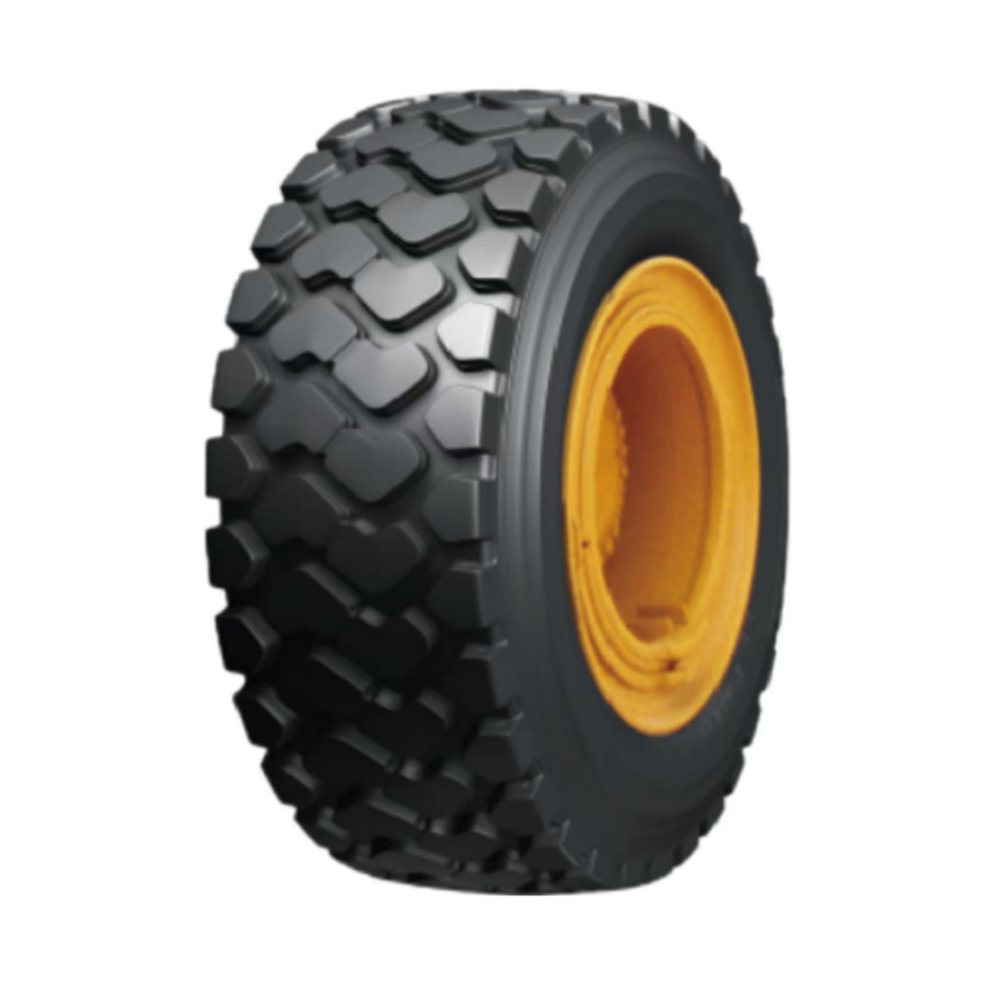

Grader tire KT711 from KUNLUN TIRES is engineered for motor graders, wheel loaders, and heavy-duty construction equipment. Featuring a robust E3/L3 tires tread design, KT711 offers outstanding traction, wear resistance, and operational stability in earthmoving and road construction environments.
· Enhanced self-cleaning design for all-purpose OTR applications.
· Multi-function, non-directional tread design for optimum usage on equipment.
· Superior traction in sand, stone, mud, and other surfaces.
· OEM Certified.
| TIRE SIZE | PATTEN | LOAD SYMBOL |
SPEED(km/h) | OD(MM) | SW(MM) | TD(MM) | RIM | SINGLE TIRE LOAD(KG) | SINGLE TIRE PRESSURE(kPa） | LOAD INDEX | NOTE |
| 17.5R25 | REM2 | ★ | 50 10 | 1340 | 448 | 27 | 14.00/1.5 | 4125 7100 | 350 450 | 157 176 | E3/L3 |
| 17.5R25 | REM2 | ★★ | 50 10 | 1340 | 448 | 27 | 14.00/1.5 | 5450 8500 | 450 575 | 167 182 | E3/L3 |
| 20.5R25 | REM2 | ★ | 50 10 | 1480 | 527 | 31 | 17.00/2.0 | 5600 9500 | 350 450 | 168 186 | E3/L3 |
| 20.5R25 | REM2 | ★★ | 50 10 | 1480 | 527 | 31 | 17.00/2.0 | 7300 11500 | 450 575 | 177 193 | E3/L3 |
| 26.5R25 | REM2 | ★ | 50 10 | 1748 | 695 | 37.5 | 22.00/3.0 | 9000 15000 | 350 450 | 184 202 | E3/L3 |
| 26.5R25 | REM2 | ★★ | 50 10 | 1748 | 695 | 37.25 | 22.00/3.0 | 11500 18500 | 450 575 | 193 209 | E3/L3 |
| 29.5R25 | REM2 | ★★ | 50 10 | 1860 | 748 | 40 | 25.00/3.5 | 14000 22400 | 450 575 | 200 216 | E3/L3 |
| 750/65R25 | REM2 | ★★ | 50 10 | 1606 | 760 | 43 | 24.00/3.0 | 10600 18500 | 425 625 | 190 209 | E3/L3 |
| 775/65R29 | REM2 | ★★ | 50 10 | 1750 | 770 | 46 | 24.00/3.5 | 12150 20600 | 425 625 | 195 213 | E3/L3 |
| 875/65R29 | REM2 | ★★ | 50 10 | 1875 | 890 | 48 | 28.00/3.5 | 15500 25750 | 425 625 | 203 221 | E3/L3 |
