Bias Ply Tire VS Radial: Which is Better for Agricultural Use?

This article compares bias ply tire vs radial tire for agricultural use. Radial tires are favored for their superior traction, fuel efficiency, and durability, significantly reducing soil compaction. Kunlun's advanced radial tires enhance crop yields and lower operating costs. While bias ply tires perform well in harsh conditions, radial tires are better suited for high-speed and versatile operations. Choosing the right tire involves considering soil type, usage, and operational needs. KunLun tire also focuses on sustainability, using eco-friendly materials to minimize environmental impact. Understanding these differences is crucial for effective agricultural machinery operation.

I. Introduction

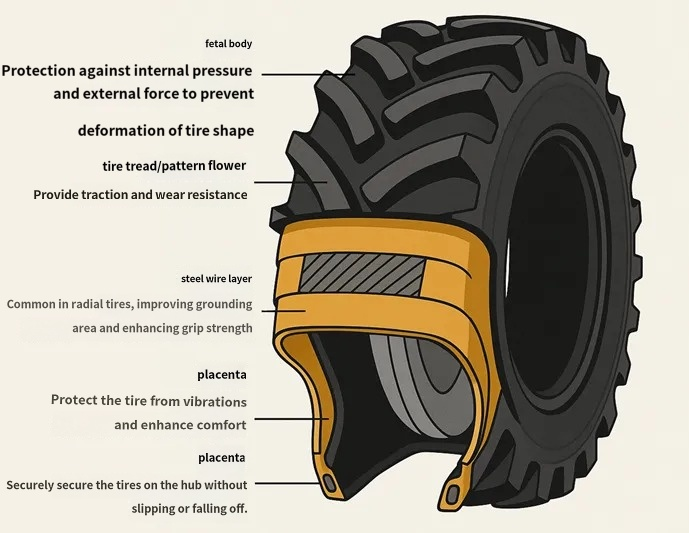

In agricultural machinery operations, it is the only link that allows the equipment to have "intimate contact" with the earth, carrying the weight and power of the entire machine. The condition of the tire is directly related to operating efficiency, fuel consumption, and even driving safety. Agricultural tires are mainly composed of the following parts: carcass, tread/tread pattern, wire layer, sidewall and bead. Choosing the right tire is crucial to improving the performance of agricultural equipment, fuel economy and soil protection. Although bias tires can withstand harsh environments, current radial tires perform better. Kunlun is a pioneer in the field of agricultural tyres, focusing on creating high-performance radial tyre for tractor and modern agriculture. Its advanced design uses reinforced steel belts and special tread patterns to improve traction and service life. It combines modern technology with actual work needs and is an ideal choice for operators who want to increase yields, protect soil and reduce operating costs.

II. Advantages of Radial Tires for Agriculture

Radial tires have become the preferred choice in modern agriculture due to their significant advantages over traditional bias-ply tires. Kunlun's advanced radial tire technology can reduce soil compaction by 30%, maintaining field quality while increasing crop yields. Compared to bias-ply tires, Kunlun radial tires offer an 8-12% improvement in fuel efficiency, resulting in significant cost savings for farmers over the long term, reducing tire replacement frequency and downtime. Kunlun offers specialized radial tires to meet a variety of agricultural needs:

bias ply tire vs radial

KT66(R-1): With strong gripping force, excellent puncture resistance, good wear resistance, and good driving performance, this type of tire is suitable for operation in fields.

KT100S: Smooth surface design produces less resistance. The anti-puncture tire side design is more suitable for operation in farms with straws.

KT171(PR-1): Traditional large block pattern design and notch in the tire shoulder provide high drainage and mud discharge performance. Wide tread, deeper pattern, large angle for pattern support at the bottom, anti-tearing tires, and super wear resistance. Reasonable pattern distribution improves traction and self-cleaning of tires. This type of tire is extremely suitable for paddy fields and muddy agricultural areas.

Kunlun radial tires, with their proven durability and innovative engineering, optimize productivity while minimizing operating costs, making them a wise investment for advanced agricultural operations.

III. Bias Ply Tire VS Radial Tire

Bias Tire
Bias Tire

The carcass cords of bias tires are arranged diagonally, with each layer of cords interlaced to form a lattice-like structure. This design results in a thicker and more rigid tire body, and is commonly found on traditional agricultural machinery. Bias tires are suitable for applications involving rough terrain, heavy soil, frequent heavy-load hauling, or tilling. Users desire durable, puncture-resistant tires; those with lower requirements for comfort and fuel efficiency prioritize low initial investment costs and easy repairs; and those primarily engaged in field operations without high-speed maneuvers.

Radial Tyre
Radial Tyre

In radial agricultural tyres, the carcass cords are arranged in a vertical direction, from the bead toward the center of the tread. They are often reinforced with a steel wire layer beneath the tread. This arrangement results in a flexible carcass with a strong tread, and is increasingly being adopted by modern agricultural machinery. Tractors, road transport vehicles, combine harvesters and other agricultural machinery with high travel speeds and frequent transfers; situations where both operating comfort and efficiency need to be taken into account; users want to save fuel and reduce the frequency of tire replacement; agricultural machinery frequently switches between fields and roads, etc., are all suitable scenarios for the use of radial tires.

Difference Between Bias Ply and Radial Tires

FeatureRadial TiresBias Ply Tires
Internal StructureBelts arranged radially (perpendicular to tread)Belts crisscross at angles (30-40°)
Contact PatchLarger, more even pressure distributionSmaller, concentrated pressure
ComfortBetter (flexible sidewalls absorb shocks)Stiffer (less cushioning)
DurabilityMore wear-resistant, longer lifespanModerate wear resistance
CostHigher (complex manufacturing)Lower (simpler construction)
Best Use CasesLong-distance hauling, versatile tasksFieldwork, heavy loads, rugged conditions

IV. How to Select the Right Agricultural Tyres

Selecting the best agricultural tyres requires careful consideration of four key factors to maximize performance and cost-effectiveness.

First, assess soil type—Kunlun radial tires, such as the KT178, feature adjustable pressure settings (recommended pressures of 18-22 psi for clay soils and 12-15 psi for sandy soils) to minimize compaction while maintaining traction.

Second, assess annual usage; for operations exceeding 2,000 hours per year, Kunlun radial tire construction offers superior service life (over 8,000 hours) and fuel savings of 8-12% compared to bias-ply tires.

Third, KunLun tire  demonstrates how its reinforced radial tires, with their extended service life and improved fuel efficiency, can reduce hourly operating costs by up to 23% with a higher initial investment. Field testing in Xinjiang demonstrated that Kunlun radial tires retained 85% of their tread depth after 5,000 hours of operation in heavy clay soil, 15% higher than competitors. For mixed operations, pairing radial tires for primary field work with bias tires for transport provides the best balance of efficiency and durability.

V. Industry Trends & KUNLUN Innovations

The agricultural tire industry is undergoing a green revolution, with sustainability becoming a key driver of innovation. Kunlun Tire is at the forefront of this transformation, pioneering the use of environmentally friendly materials and technologies to reduce environmental impact while maintaining high performance. Recent advancements include the use of bio-based rubber compounds, which offer a 7% reduction in rolling resistance compared to traditional materials, directly translating into lower fuel consumption and CO2 emissions. Kunlun's commitment to sustainability extends to its manufacturing process, incorporating recycled materials and energy-efficient production methods. This allows farmers to optimize tire pressure in real time based on varying soil conditions, further improving fuel efficiency and minimizing soil compaction.

These innovations align with global trends toward precision agriculture and reducing carbon footprints. By combining sustainable materials with cutting-edge technology, KunLun tire ensures its agricultural tyres not only offer exceptional durability and traction, but also support environmentally friendly farming practices. For farmers seeking to balance productivity and sustainability, Kunlun's next-generation radial tires offer a compelling solution that meets both operational and ecological needs.

VI. Conclusion

With the rise of agricultural mechanization, radial tires are gradually replacing bias tires due to their superior overall performance, particularly on high-speed equipment like large tractors and harvesters. However, for certain mountainous areas, heavy loads, and low-speed operations, bias tires still offer an irreplaceable advantage in durability. For agricultural machinery operators, understanding structural differences and selecting the appropriate tire for the specific application is more important than simply pursuing price or "new technology." Choosing the right agricultural tyres is about finding the right balance between efficiency, cost, and safety.
